18 mph
Top speed
0
Emissions
14 and 23
Passenger options
drives environmental and operational change at every turn.
Operating a private transit fleet built around STAR’s M-SERIES vehicles may not be magic, but it sure comes close. Making its scheduled rounds with exceptionally high visibility and noticeably lower costs, the M-SERIES drives environmental and operational change at every turn.
Fast on-board charging and driving range are roundtrip-friendly. Treated to ergonomic design, comfortable seating and a smooth quiet ride, passengers are eager to get on board, filling the seats with no reservations. Every day, even twice a day or more, M-SERIES is at your service.
Experience the future of clean, comfortable group transportation with Star EV’s M Series electric buses. Designed for maximum passenger comfort and safety, these zero-emission vehicles feature smooth acceleration, excellent visibility, and DOT-certified seatbelts for every passenger—perfect for resorts, campuses, and community transit. With models seating up to 23 passengers, the M Series offers customizable options like AC drive, aluminum wheels, and PA systems. Whether you're moving guests, residents, or employees, the M Series delivers reliable performance with a quiet, eco-friendly ride.
FAQs

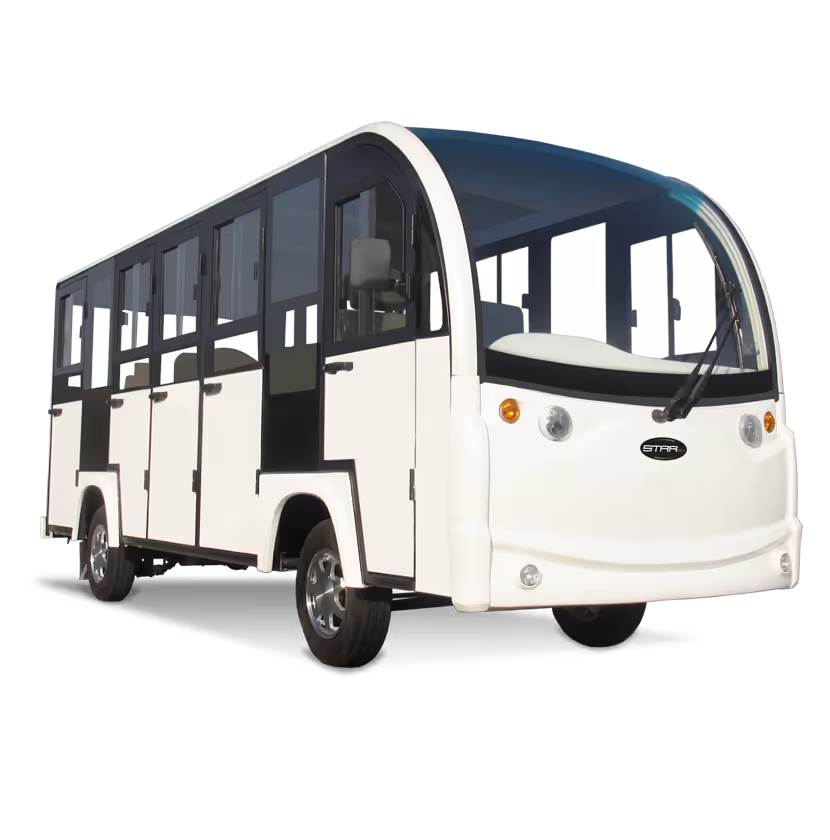

What is the STAR EV M Series 14P Bus designed for?
The M Series 14P bus is a fully electric, low-speed shuttle bus designed for off-road and limited on-road use in communities that permit such vehicles. It’s ideal for transporting up to 14passengers in environments like resorts, campuses, and neighborhoods
What kind of power system does it use?
The bus is powered by lead acid or lithium batteries and features zero emissions, making it environmentally friendly
What is the warranty coverage
One year bumper to bumper warranty
What are other popular options?
A battery watering system is recommended for lead acid batteries, solar panels and a fast charger are other popular upgrades.
Specifications
Dimensions
Overall dimensions
196”L x 60”W x 81”H(498 cm x 152 cm x 206 cm)
Wheel base
105” (267 cm)
Ground Clearance
4” (10 cm)
Wheel Type
13” (33 cm) aluminum
Tire Size
167/70-R13 DOT
Tire Pressure
44 psi (303 kPa)
BODY & CHASSIS
Chassis
Tubular Structural steel with powder coat
Body material
Metal plate and plastic
power
battery system
12, 6-V, Trojan T-105
motor power
10 hp (7.5 kW) AC motor
speed controller
550A Controller
performance
passengers
14
top speed
18 mph (29 kph)
top climbing grade
20%
turning radius
21 ft (6.4 m)
load capacity
2640 lbs (1197 kg)
weight with batteries
2800 lbs (1270 kg)
drive train
Autodrive
brake system
Four wheel brake drum
steering & suspension
steering system
Rack and pinion power steering
front suspension
Independent, coil over shock
rear suspension
Leaf spring and shock
Specifications are subject to change without notification
Dimensions
Overall dimensions
224”L x 71”W x 90”H(570 cm x 180 cm x 229 cm)
Wheel base
135” (343 cm)
Ground Clearance
4” (10 cm)
Wheel Type
15” (38 cm) steel
Tire Size
195/70R 15C, DOT
Tire Pressure
44 psi (303 kPa)
BODY & CHASSIS
Chassis
Tubular Structural steel with powder coat
Body material
Metal plate and plastic
power
battery system
12, 6-V, Trojan T-105
motor power
12 hp (8.9 kW) AC motor
speed controller
550A Controller
performance
passengers
23
top speed
18 mph (29 kph)
top climbing grade
15%
turning radius
26 ft (7.9 m)
load capacity
3850 lbs (1746 kg)
weight with batteries
4000 lbs (1818 kg)
drive train
Autodrive
brake system
Four wheel brake drum
steering & suspension
steering system
Rack and pinion power steering
front suspension
Independent, coil over shock
rear suspension
Leaf spring and shock
Specifications are subject to change without notification
